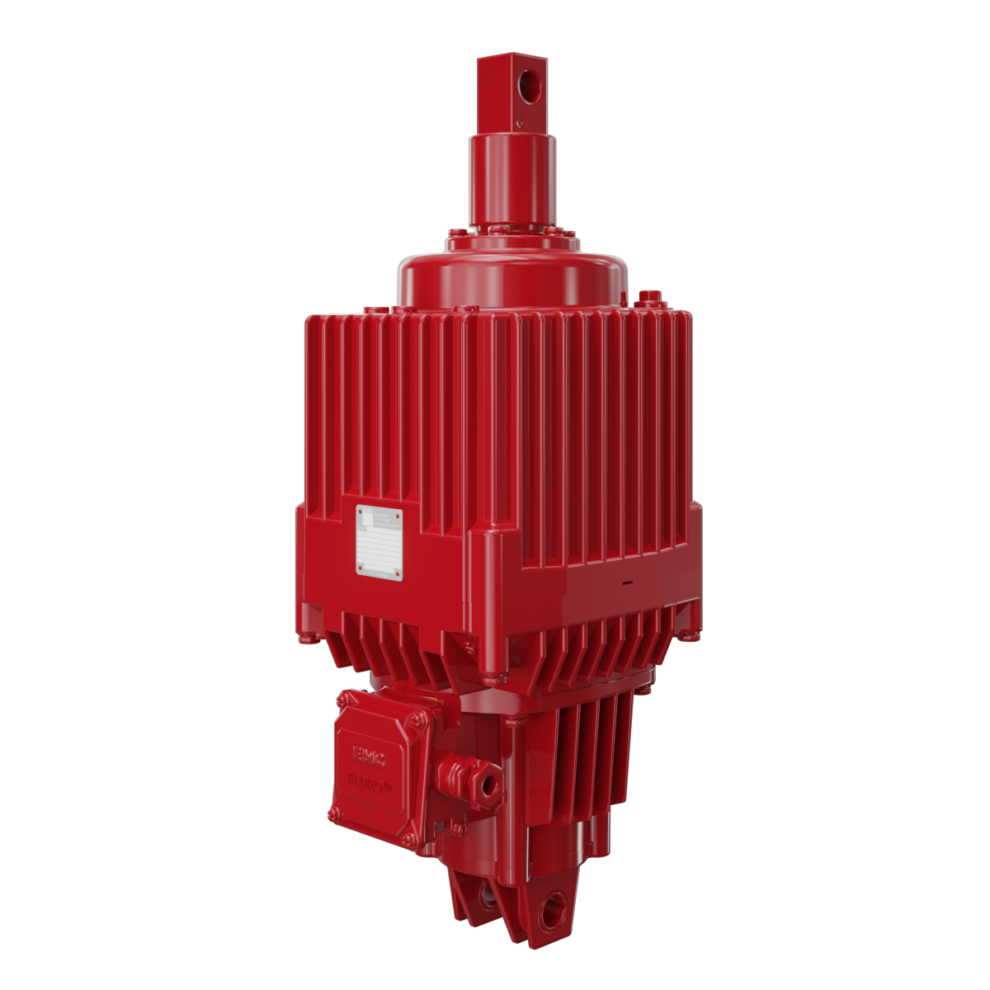

The electro hydraulic system of the ELDROclassic® thrusters, in conjunction with the straight forward integration in brake systems and the simple electrical start-up, resultin the following features under the diverse application conditions:
- High operational safety
- Long service life due to wear-freework under constant self-lubrication
- Soft and impact-free mode of operation, as a systemic result of the hydraulic working principle
- Short actuating times
- Approved continuous operation S1
- High switching frequency of up to 2,000 cycles per hour in switching operation S3
- Reversing operation without limitations
- Easy to install and de-install
- Arbitrary direction of motorrotation, meaning no change overcontactors required
- Overloading not possible duringoperation
- Arbitrary external limiting of thestroke path
- Stepless extension of the lifting and/or lowering times through the installation of valves
- The fill level of the operating medium is optimised according to the application conditions andrequires no further checking
- Standard: 230/400 V, 50 Hz, 3 ~290/500 V, 50 Hz, 3 ~ 400/690 V,50 Hz, 3 ~
- Standard insulation according to insulation class F
- Continuous operation S1 and intermittent operation S3 – 60% duty cycle (duty factor) Standard
- Mineral hydraulic oil or silicone oil depending on operating conditions, e.g., ambient temperature, filled at the factory
- Protection class Standard IP 65
- Painting: RAL 3003 – red
- D spring
- C spring
- Special painting
- Special voltages
- Protection class up to IP 68
- Bridge/Sluice systems
- Crane technology
- Mining & Material handling
- Offshore/Ship
- Railbound hall roofs and gates
- Special machine construction
- Steel industry
- Storage technology
- Wind industry
