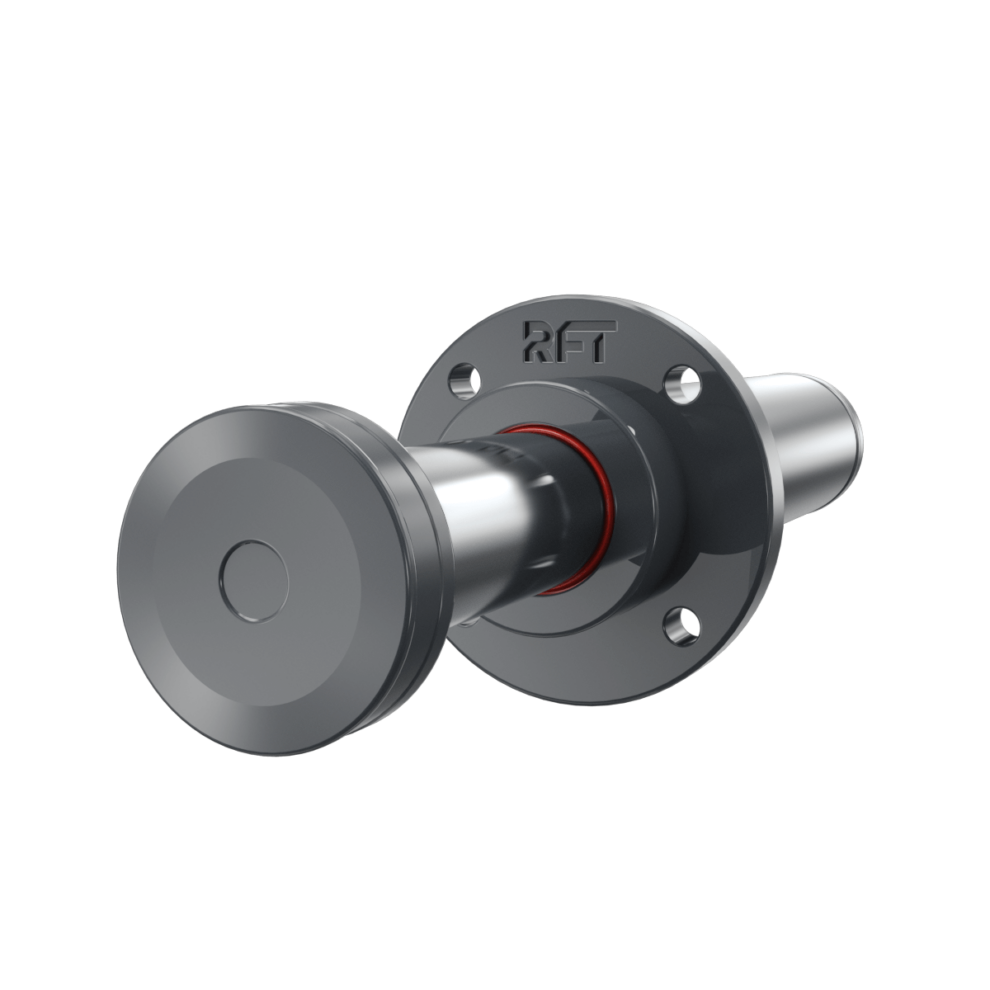

Particularly suitable for crane systems, heavy machinery and handling equipment of all kinds.
- Own production in Germany
- Buckling loads, especially with long strokes, are always taken into account
- Hydraulic buffers are calculated according to the system / highest safety!
- Integrated piston accumulator with nitrogen filling
- Progressively rising restoring force (buffer force) at the end of stroke
- Piston rod double chromed – Marine protected (standard)
- PUDZ III is an optimization of the well-known PUDZ II
- Piston size ø 63 mm – ø 160 mm
- Stroke lengths 50 mm to 1600 mm
- Energy absorption up to 582 kJ/stroke
- Buffer force up to 1000 kN
- Flange mounting:- Front flange “EF”- Bottom flange “FF”-
- Self-contained system, suitable for any mounting positions
- Buckling loads, especially with long strokes, are always taken into account
- Hydraulic buffers are calculated according to the system / highest safety!
- Short delivery times

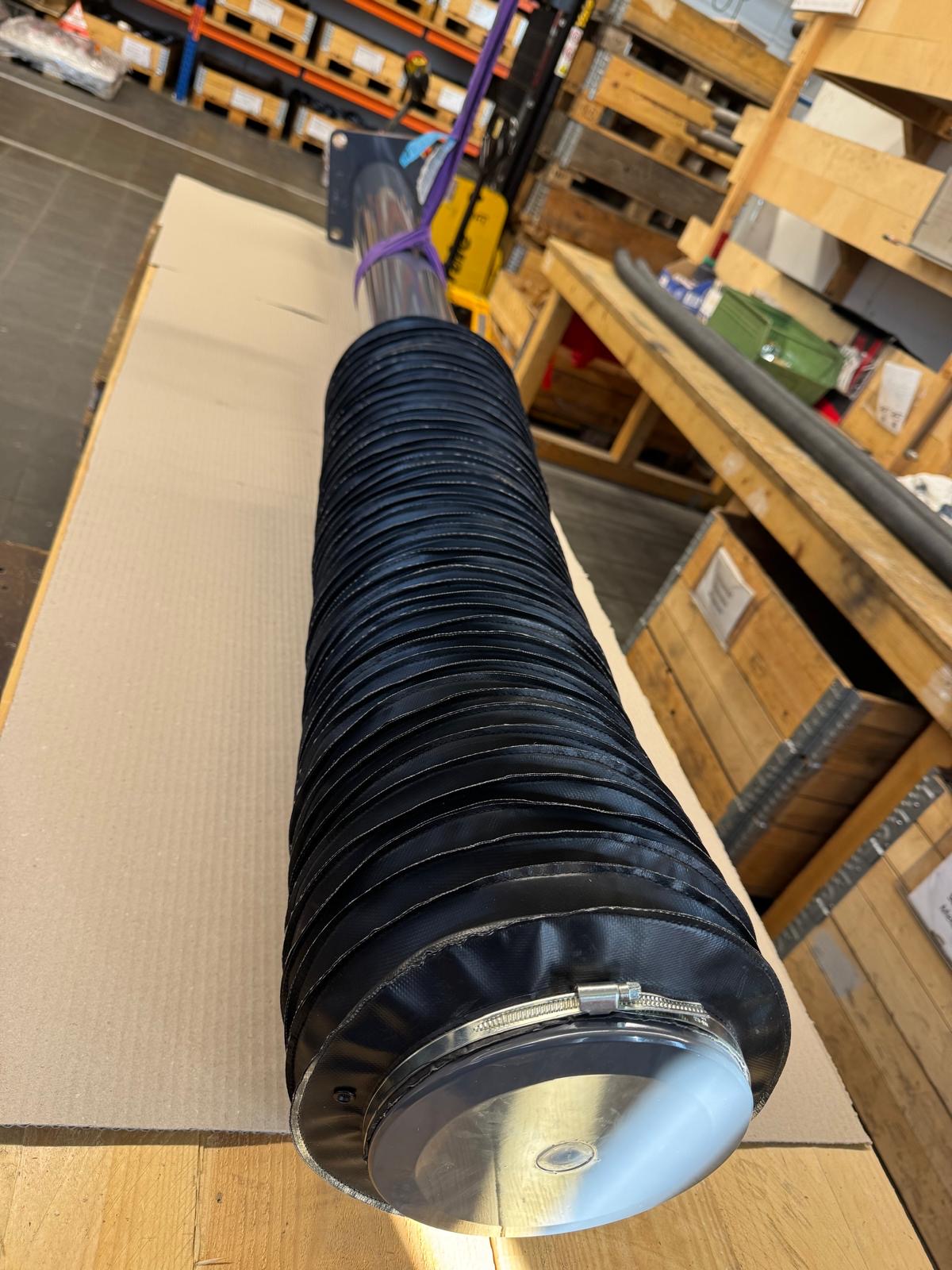

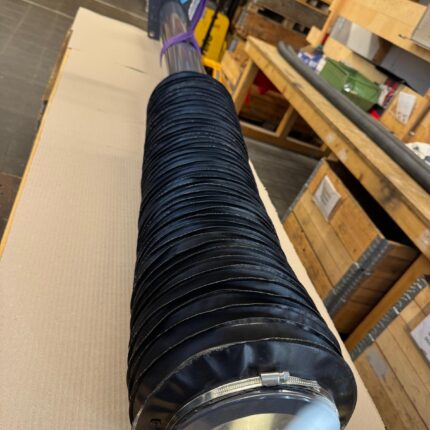

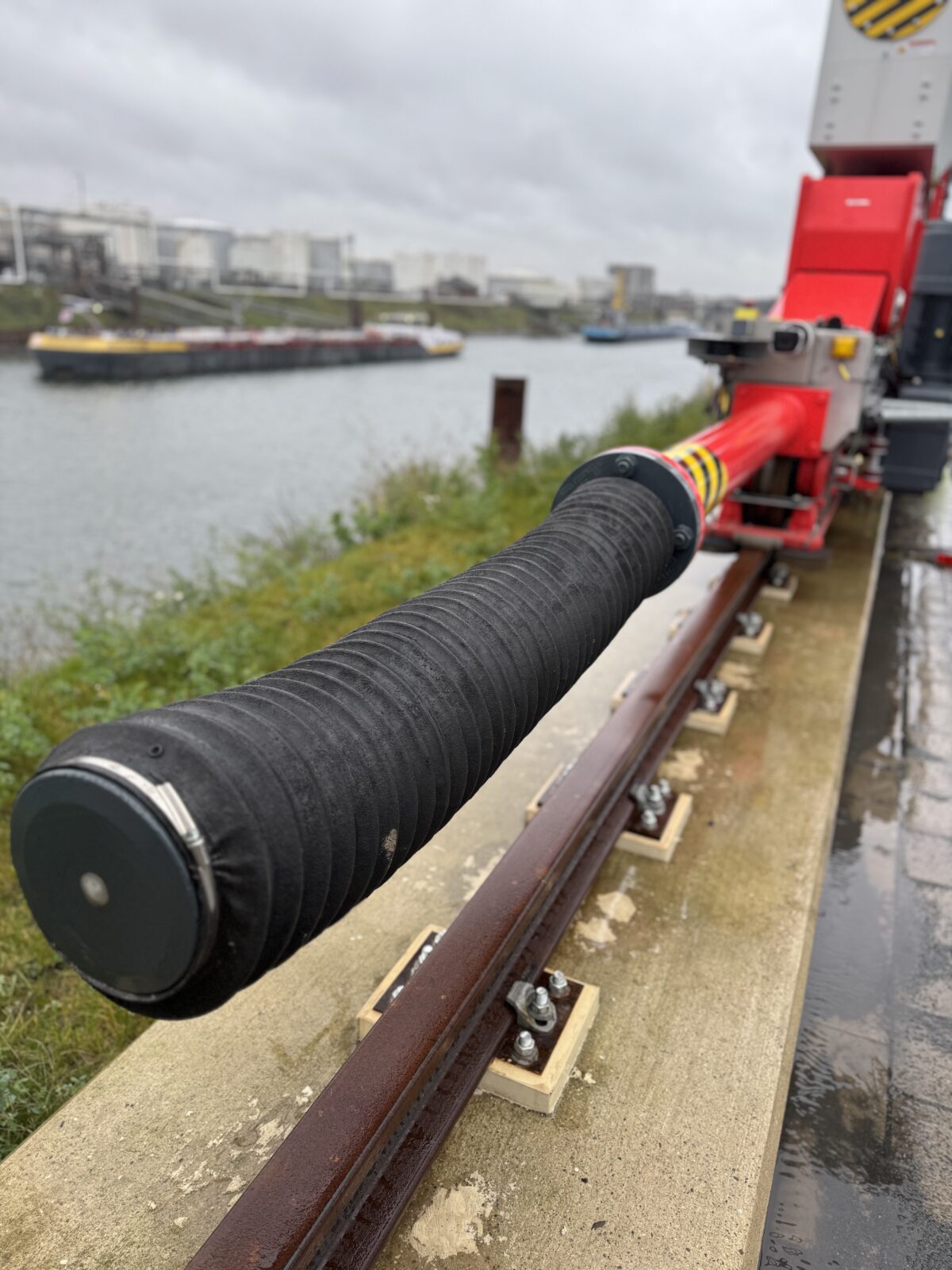

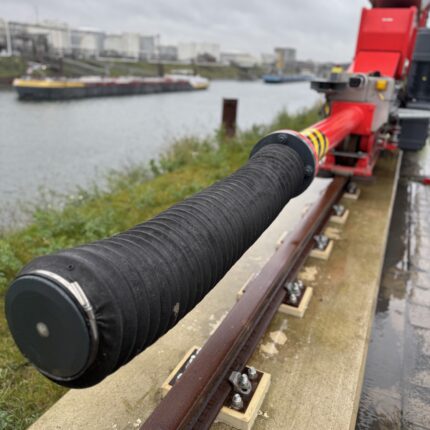

- Bellows as piston rod protection
- Special flanges / square version also available (type PUDZ III OP)
- High and low temperature version Piston rod monitoring system
- Buffer head catching system (buffer against buffer)
- Buffer head catching ring (position stabilization)
- Crane technology
- Bridge/Sluice systems
- Mining & Material handling
- Offshore/Ship
- Railbound hall roofs and gates
- Steel industry
- Special machine construction
