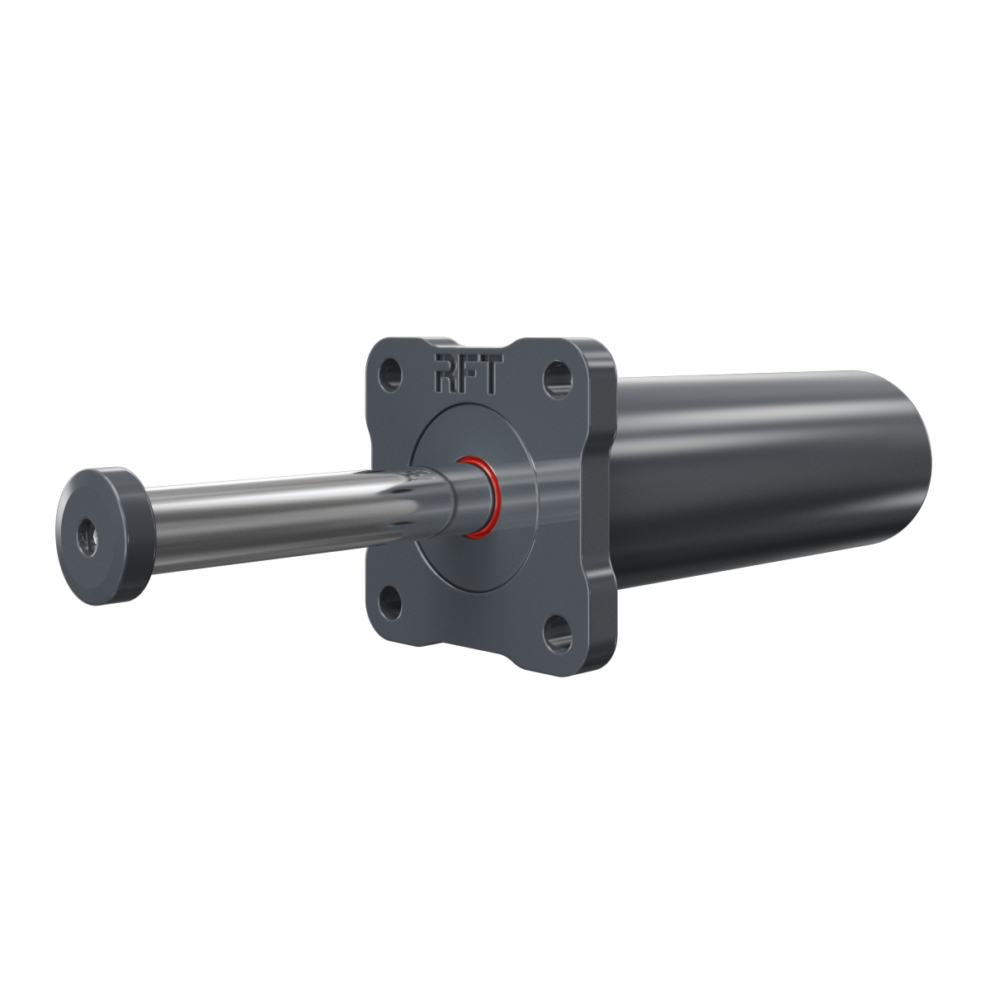

Hydraulic buffer for emergency stop applications in storage and retrieval systems / Automatic high-bay warehouses.
REPLACEMENT FOR ALGI BUFFER!
- Piston rod size ø 40 mm to ø 63 mm
- Stroke lengths from 100 mm to 1200 mm
- Energy absorption up to 130 kJ/hub
- Buffer force up to 220 kN
- Flange mounting type: Front flange EF, Bottom flange FF or Pedestal flange SF
- MADE IN GERMANY
- Inclusive membrane AND membrane protection tube (standard)
- Oil and gas will be separated
- No gas/oil mix in case of an puffer impact
- Piston rod protection
- Special flange mounting
- Special painting (Please specify RAL color)
- Console for buffer mounting
- Special construction
