- Torque adjustable
- For brake disc ø 250 mm to ø 1250 mm
- Braking torques from 200 Nm up to 23800 Nm per brake
- With “SLM” synchro-lifting-mechanism (guarantees automatically an uniform lifting gap between brake lining and brake disc)
- MADE IN GERMANY.
- Braking by spring force
- Lifting electro-hydraulically (thruster) – standard version

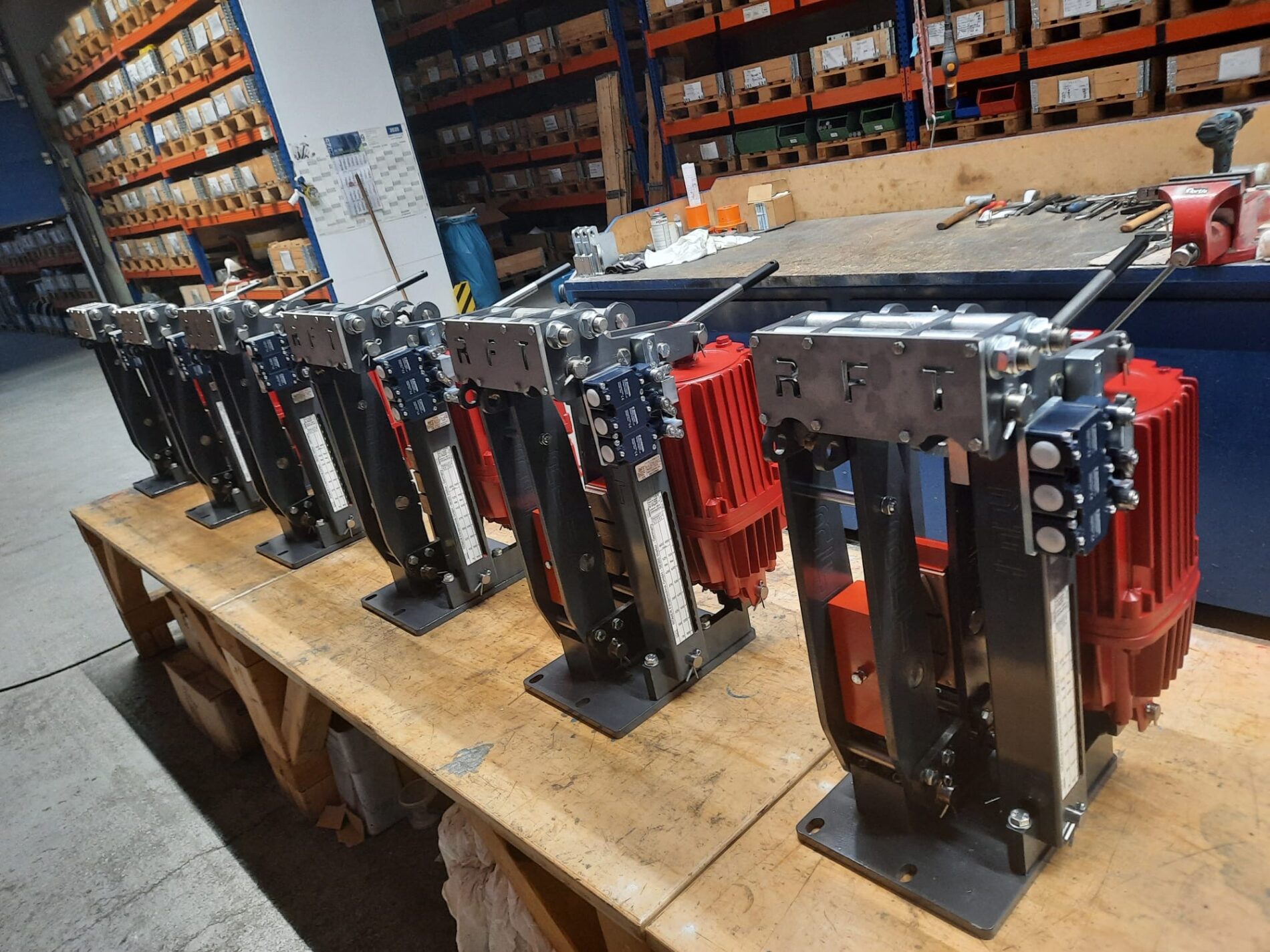

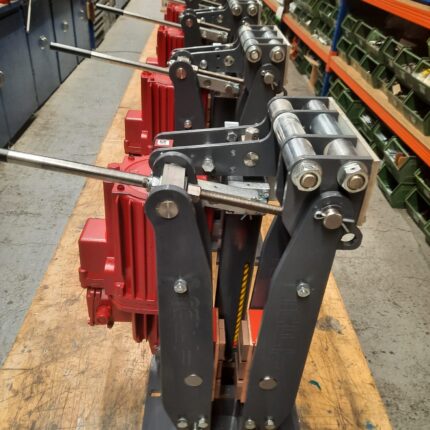

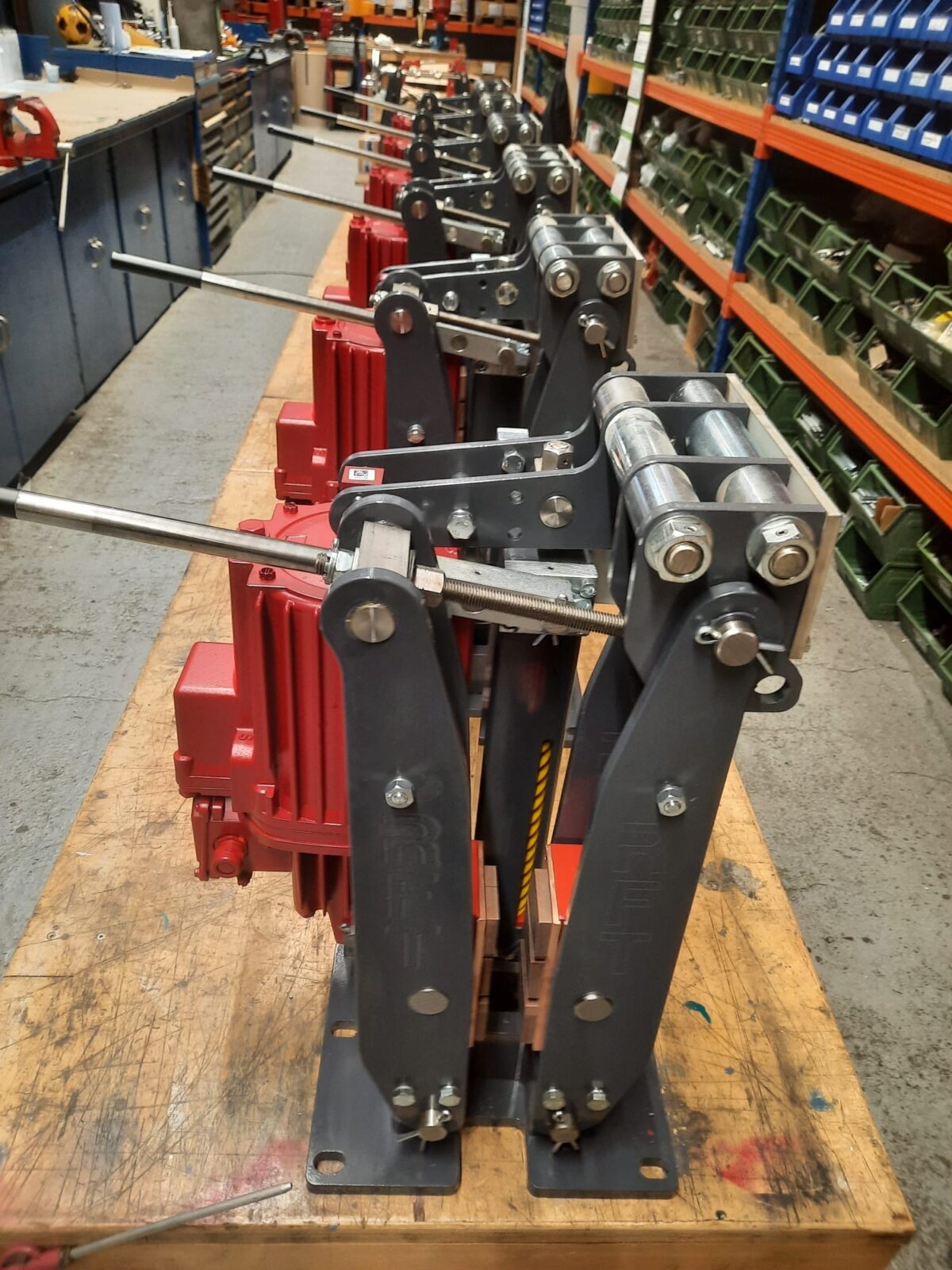

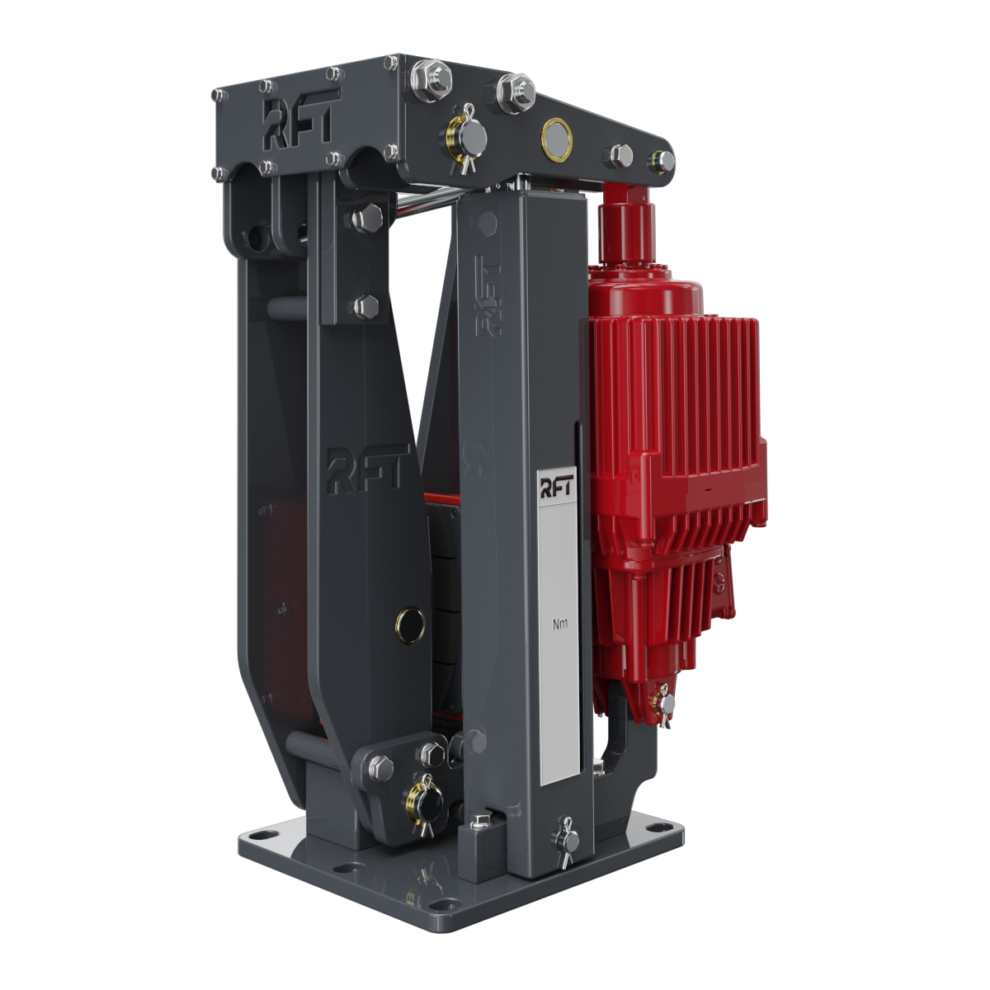

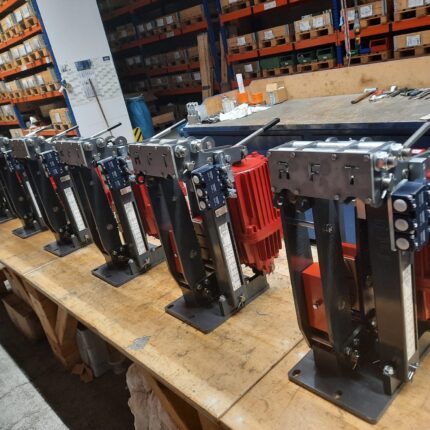

- Type: RSTN-0, RSTN-0-L (horizontal), RSTN-1, RSTN-2, RSTN-3
- Sintered brake linings
The geometrically optimized system guarantees constant brake torques independent of the rotational direction. Due to the standardized and internally produced components, special brake disc constructions can be delivery in a short period of time.
- Limit switch protection: Mechanical or inductive
- “Brake opened”, “Brake closed”, “Brake check/wear”
- Hand lifting deviceSafety limit switch for “hand lifting device in use”
- Automatic wear adjustment (AVN)
- Special paintingSpecial construction
- Crane technology
- Offshore/Ship
- Mining & Material handling
- Steel industry
- Wind industry
